L3-1/2x3-1/2x1/4 (L3.5x3.5x.25) – L Shapes - Equal Leg Angles

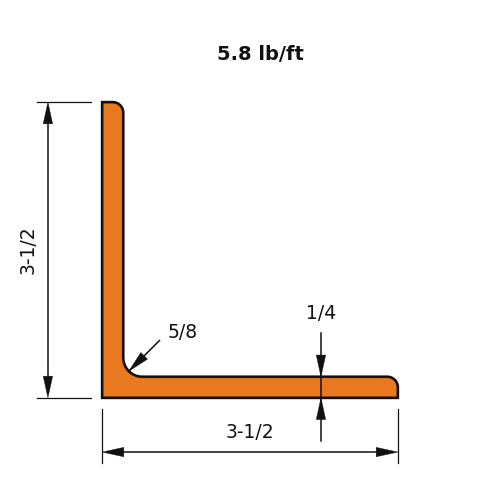

L3-1/2x3-1/2x1/4 is an equal-leg angle with 3.5 in (89 mm) legs, 1/4 in (6 mm) thick, weighing 5.8 lb/ft (8.6 kg/m).

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
