L5x3-1/2x3/8 (L5x3.5x.375) – L Shapes - Unequal Leg Angles

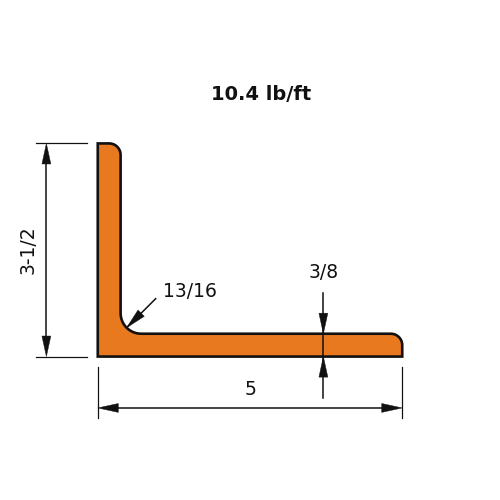

L5x3-1/2x3/8 is an unequal-leg angle with 5 in (127 mm) x 3.5 in (89 mm) legs, 3/8 in (10 mm) thick, weighing 10.4 lb/ft (15.5 kg/m).
Unequal leg angles have two legs of different sizes meeting at a right angle, which lets you place the longer leg where the span or connection needs it. They share the practical advantages of all angles: inexpensive, easy to cut, drill, bolt and weld, and useful wherever a structure needs bracing, a connection element or a lightweight framing member. The unequal geometry suits lintels over doors and windows, shelf angles, unequal-leg bracing, truss members and general fabrication work where one direction carries more load than the other.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 10.4 |
| Leg Size (in) | 3.5 |
| Leg Size (in) | 5.0 |
| Nominal Thickness (in) | 0.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 7.75 |
| Zx (in³) | 4.09 |
| Sx (in³) | 2.28 |
| rx (in) | 1.59 |
| Iy (in⁴) | 3.15 |
| Zy (in³) | 2.12 |
| Sy (in³) | 1.19 |
| ry (in) | 1.02 |
| Iz (in⁴) | 1.73 |
| rz (in) | 0.755 |
| Sz (in³) | 0.983 |
| J (in⁴) | 0.15 |
| Cw (in⁶) | 0.217 |
| ro (in) | 2.45 |
