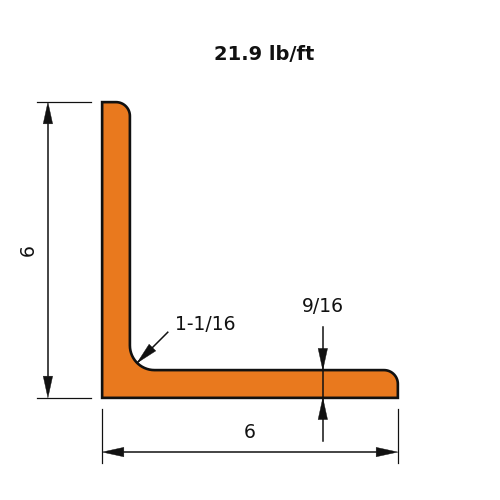

L Shapes - Equal Leg Angles - L6x6x.5625
Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 21.9 |
| Leg Size | 6.0 |
| Leg Size | 6.0 |
| Nominal Thickness | 0.563 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 22 |
| Zx | 9.18 |
| Sx | 5.12 |
| rx | 1.85 |
| Iy | 22 |
| Zy | 9.18 |
| Sy | 5.12 |
| ry | 1.85 |
| Iz | 8.9 |
| rz | 1.18 |
| Sz | 3.71 |
| J | 0.704 |
| Cw | 1.85 |
| ro | 3.29 |
| H | 0.63 |
Full sortable table: Section properties table for this family
