L Shapes - Equal Leg Angles - L6x6x.875
Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
Nearby Sections

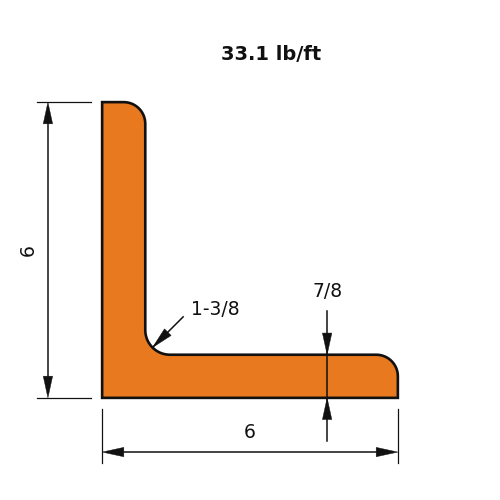

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 33.1 |
| Leg Size | 6.0 |
| Leg Size | 6.0 |
| Nominal Thickness | 0.875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 31.9 |
| Zx | 13.7 |
| Sx | 7.61 |
| rx | 1.81 |
| Iy | 31.9 |
| Zy | 13.7 |
| Sy | 7.61 |
| ry | 1.81 |
| Iz | 13.3 |
| rz | 1.17 |
| Sz | 5.2 |
| J | 2.51 |
| Cw | 6.41 |
| ro | 3.21 |
| H | 0.63 |
Full sortable table: Section properties table for this family
