L8x8x1-1/8 (L8x8x1.125) – L Shapes - Equal Leg Angles

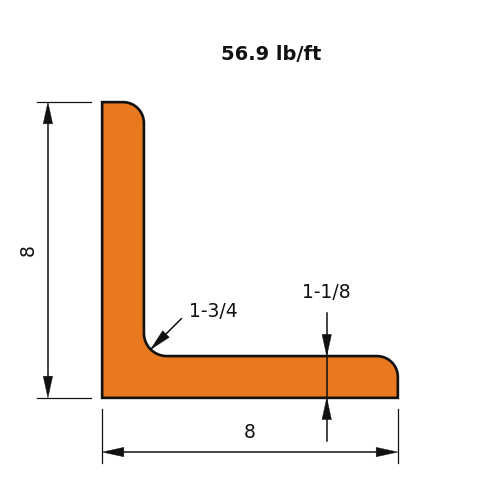

L8x8x1-1/8 is an equal-leg angle with 8 in (203 mm) legs, 1-1/8 in (29 mm) thick, weighing 56.9 lb/ft (84.7 kg/m).

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
