HSS Shapes - Round - HSS1.660X.140

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

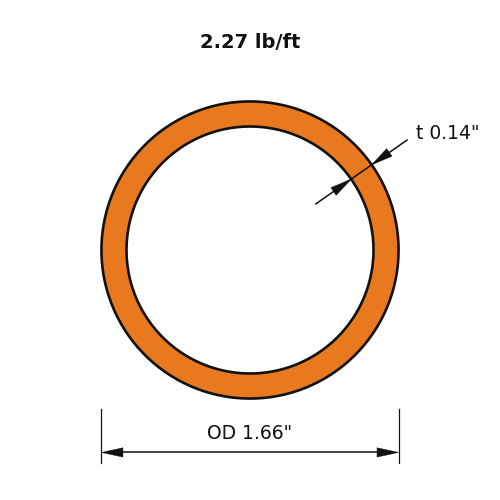

Dimensions

PropertyValue
Nominal Weight2.27
Outside Diameter1.66
Nominal Thickness0.14

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.184
Zx0.305
Sx0.222
rx0.543
Iy0.184
Zy0.305
Sy0.222
ry0.543
J0.368
C0.444

Full sortable table: Section properties table for this family
