HSS Shapes - Round - HSS1.900X.145

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

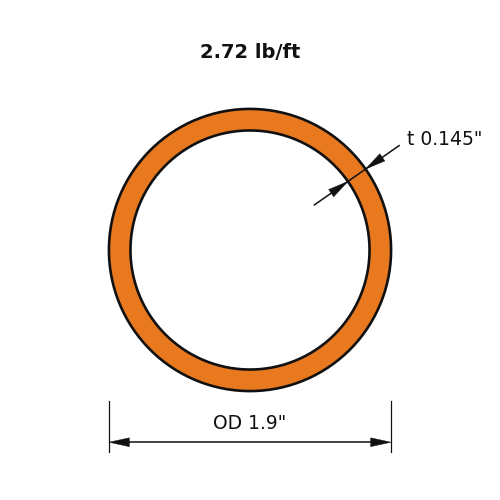

Dimensions

PropertyValue
Nominal Weight2.72
Outside Diameter1.9
Nominal Thickness0.145

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.293
Zx0.421
Sx0.309
rx0.626
Iy0.293
Zy0.421
Sy0.309
ry0.626
J0.586
C0.617

Full sortable table: Section properties table for this family
