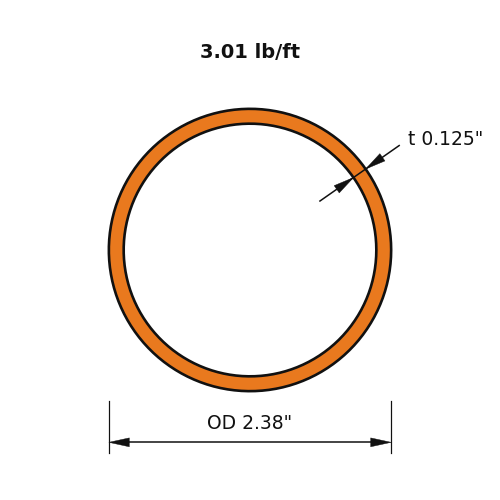

HSS Shapes - Round - HSS2.375X.125

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight3.01
Outside Diameter2.375
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.527
Zx0.592
Sx0.443
rx0.8
Iy0.527
Zy0.592
Sy0.443
ry0.8
J1.05
C0.887

Full sortable table: Section properties table for this family
