HSS20x12x5/8 (HSS20x12x.625) – HSS Shapes - Rectangular

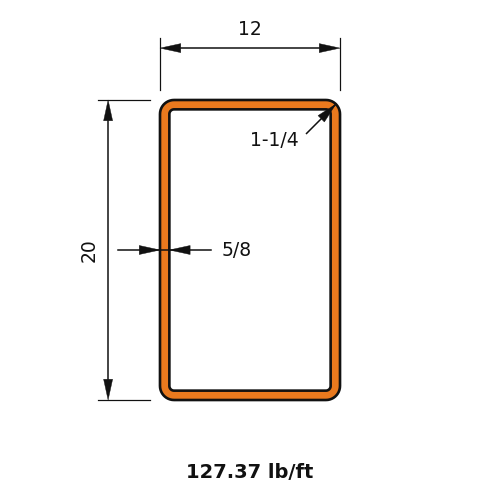

HSS20x12x5/8 is a 20 in (508 mm) x 12 in (305 mm) rectangular hollow section with a 5/8 in (16 mm) nominal wall, weighing 127.37 lb/ft (189.5 kg/m).
Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 127.37 |
| Depth of Section (in) | 20.0 |
| Depth of Flat Wall (in) | 18.3 |
| Width of Section (in) | 12.0 |
| Width of Flat Wall (in) | 10.3 |
| Nominal Thickness (in) | 0.625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 1880 |
| Zx (in³) | 230 |
| Sx (in³) | 188 |
| rx (in) | 7.33 |
| Iy (in⁴) | 851 |
| Zy (in³) | 162 |
| Sy (in³) | 142 |
| ry (in) | 4.93 |
| J (in⁴) | 1890 |
| C (in³) | 257 |
Full sortable table: Section properties table for this family
