HSS Shapes - Round - HSS4X.220

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

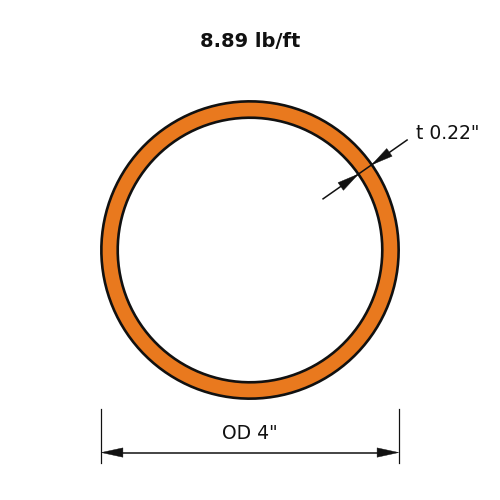

Dimensions

PropertyValue
Nominal Weight8.89
Outside Diameter4.0
Nominal Thickness0.22

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix4.41
Zx2.96
Sx2.21
rx1.34
Iy4.41
Zy2.96
Sy2.21
ry1.34
J8.83
C4.41

Full sortable table: Section properties table for this family
