HSS Shapes - Round - HSS4.500X.337
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

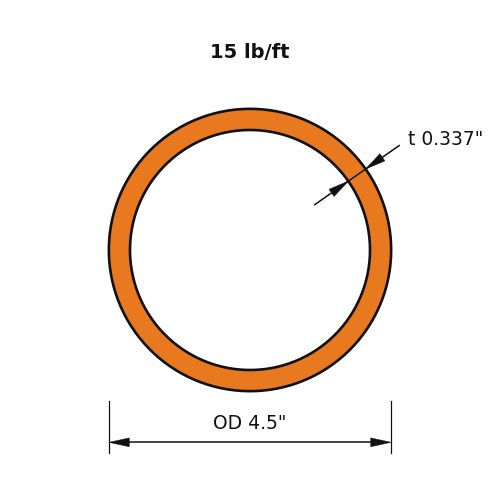

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 15.0 |
| Outside Diameter | 4.5 |
| Nominal Thickness | 0.337 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 9.07 |
| Zx | 5.5 |
| Sx | 4.03 |
| rx | 1.48 |
| Iy | 9.07 |
| Zy | 5.5 |
| Sy | 4.03 |
| ry | 1.48 |
| J | 18.1 |
| C | 8.06 |
Full sortable table: Section properties table for this family
