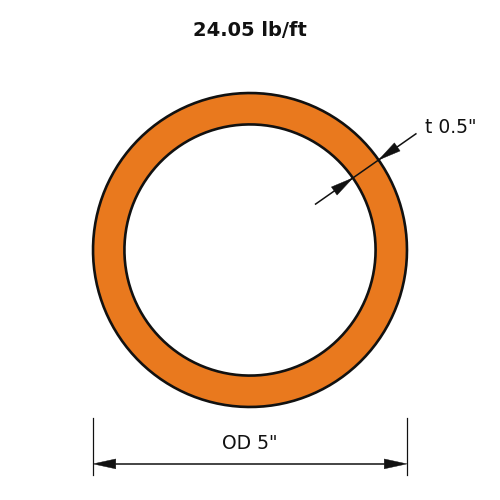

HSS Shapes - Round - HSS5X.500
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 24.05 |
| Outside Diameter | 5.0 |
| Nominal Thickness | 0.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 17.2 |
| Zx | 9.6 |
| Sx | 6.88 |
| rx | 1.61 |
| Iy | 17.2 |
| Zy | 9.6 |
| Sy | 6.88 |
| ry | 1.61 |
| J | 34.4 |
| C | 13.8 |
Full sortable table: Section properties table for this family
