HSS Shapes - Round - HSS5.563X.188

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

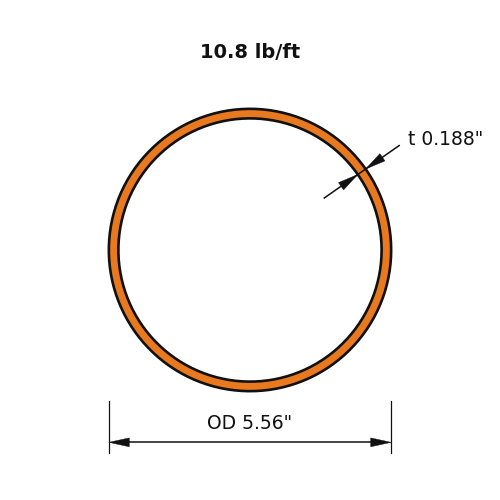

Dimensions

PropertyValue
Nominal Weight10.8
Outside Diameter5.563
Nominal Thickness0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix10.7
Zx5.05
Sx3.85
rx1.91
Iy10.7
Zy5.05
Sy3.85
ry1.91
J21.4
C7.7

Full sortable table: Section properties table for this family
