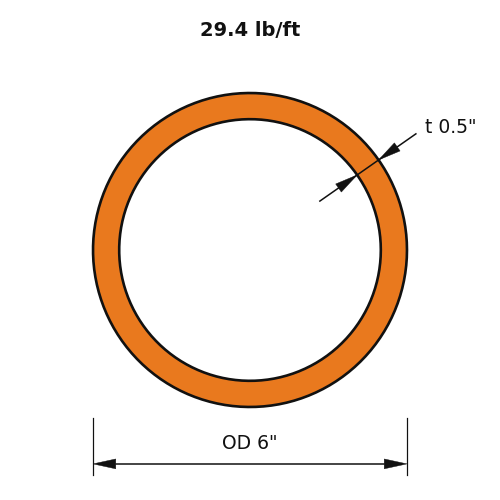

HSS Shapes - Round - HSS6X.500

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight29.4
Outside Diameter6.0
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix31.2
Zx14.3
Sx10.4
rx1.96
Iy31.2
Zy14.3
Sy10.4
ry1.96
J62.4
C20.8

Full sortable table: Section properties table for this family
