HSS Shapes - Round - HSS6.875X.250

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

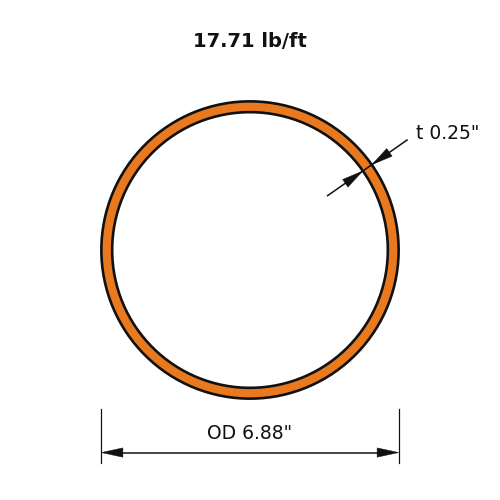

Dimensions

PropertyValue
Nominal Weight17.71
Outside Diameter6.875
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix26.8
Zx10.3
Sx7.81
rx2.35
Iy26.8
Zy10.3
Sy7.81
ry2.35
J53.7
C15.6

Full sortable table: Section properties table for this family
