HSS Shapes - Round - HSS7X.250

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

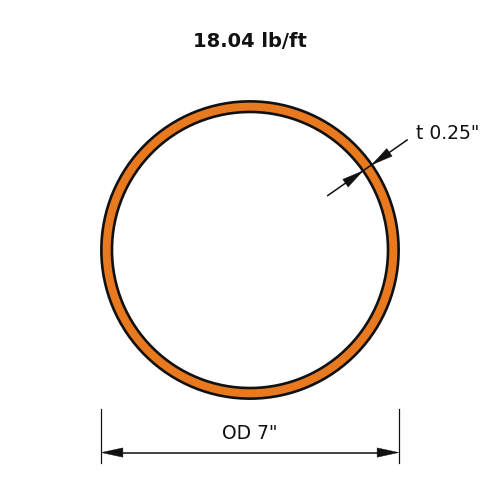

Dimensions

PropertyValue
Nominal Weight18.04
Outside Diameter7.0
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix28.4
Zx10.7
Sx8.11
rx2.39
Iy28.4
Zy10.7
Sy8.11
ry2.39
J56.8
C16.2

Full sortable table: Section properties table for this family
