HSS7-1/2x3/8 (HSS7.5x.375) – HSS Shapes - Round

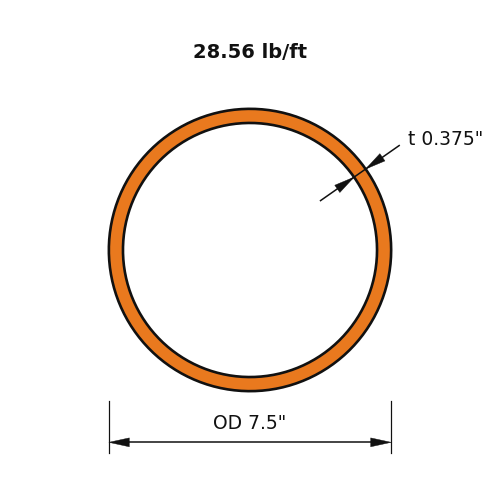

HSS7-1/2x3/8 is a 7.5 in (191 mm) diameter round hollow section with a 3/8 in (10 mm) nominal wall, weighing 28.56 lb/ft (42.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)28.56
Outside Diameter (in)7.5
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)50.2
Zx (in³)17.9
Sx (in³)13.4
rx (in)2.53
Iy (in⁴)50.2
Zy (in³)17.9
Sy (in³)13.4
ry (in)2.53
J (in⁴)100
C (in³)26.8

Full sortable table: Section properties table for this family
