HSS Shapes - Round - HSS8.625X.322

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

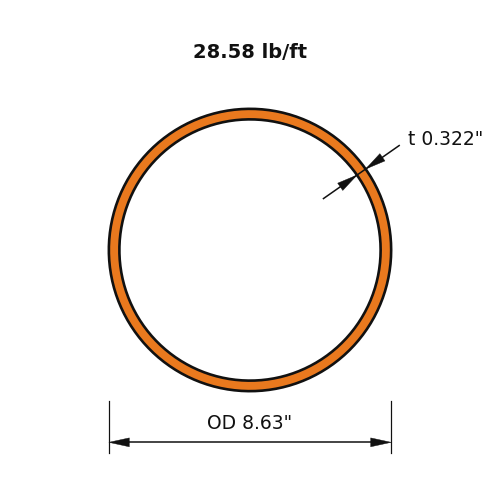

Dimensions

PropertyValue
Nominal Weight28.58
Outside Diameter8.625
Nominal Thickness0.322

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix68.1
Zx20.8
Sx15.8
rx2.95
Iy68.1
Zy20.8
Sy15.8
ry2.95
J136
C31.6

Full sortable table: Section properties table for this family
