HSS Shapes - Round - HSS8.625X.500

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

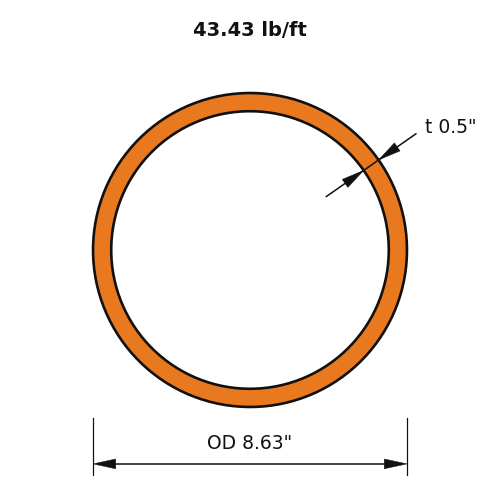

Dimensions

PropertyValue
Nominal Weight43.43
Outside Diameter8.625
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix100
Zx31
Sx23.1
rx2.89
Iy100
Zy31
Sy23.1
ry2.89
J199
C46.2

Full sortable table: Section properties table for this family
