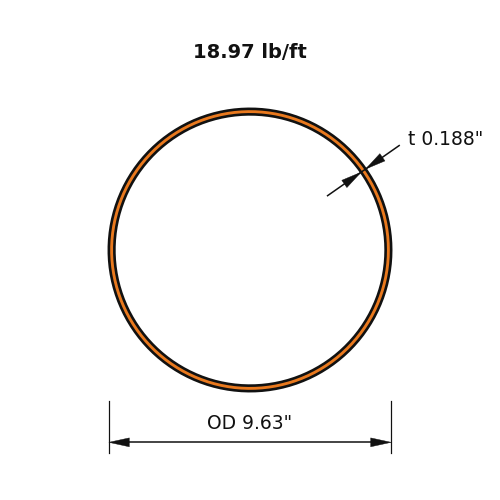

HSS Shapes - Round - HSS9.625X.188

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight18.97
Outside Diameter9.625
Nominal Thickness0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix57.7
Zx15.5
Sx12
rx3.34
Iy57.7
Zy15.5
Sy12
ry3.34
J115
C24

Full sortable table: Section properties table for this family
