HSS Shapes - Round - HSS10X.500

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

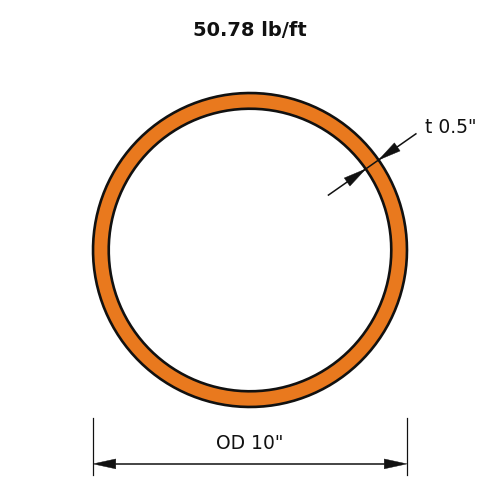

Dimensions

PropertyValue
Nominal Weight50.78
Outside Diameter10.0
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix159
Zx42.3
Sx31.7
rx3.38
Iy159
Zy42.3
Sy31.7
ry3.38
J317
C63.5

Full sortable table: Section properties table for this family
