HSS Shapes - Round - HSS14X.625

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

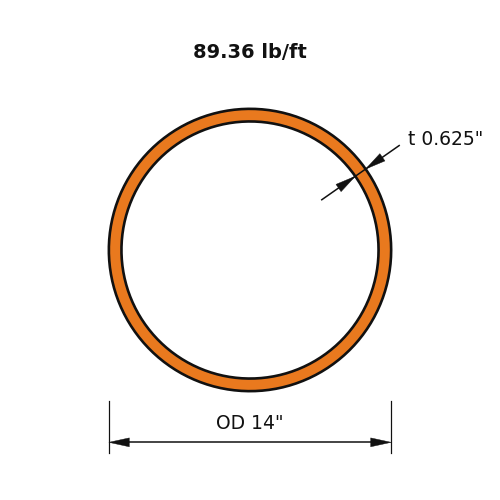

Dimensions

PropertyValue
Nominal Weight89.36
Outside Diameter14.0
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix552
Zx105
Sx78.9
rx4.75
Iy552
Zy105
Sy78.9
ry4.75
J1100
C158

Full sortable table: Section properties table for this family
