HSS Shapes - Round - HSS16X.250

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

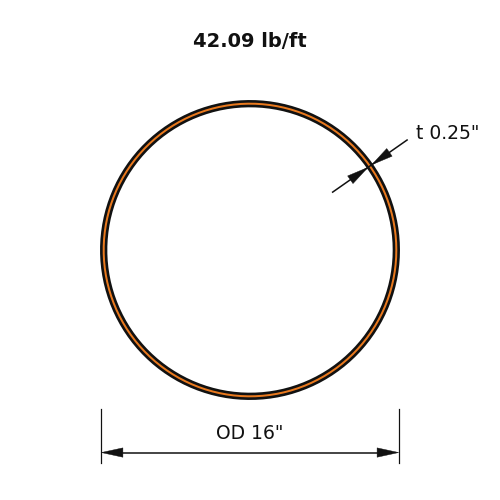

Dimensions

PropertyValue
Nominal Weight42.09
Outside Diameter16.0
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix359
Zx57.9
Sx44.8
rx5.58
Iy359
Zy57.9
Sy44.8
ry5.58
J717
C89.7

Full sortable table: Section properties table for this family
