HSS Shapes - Round - HSS16X.625

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

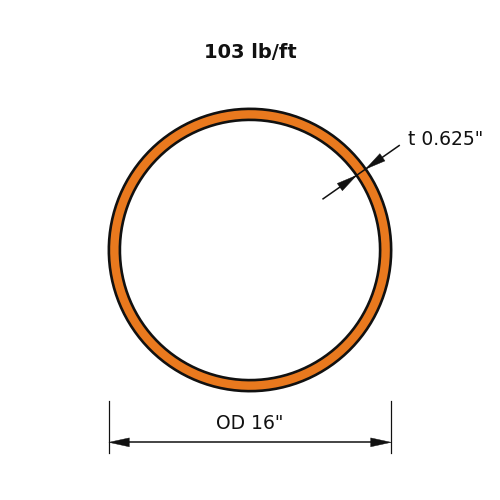

Dimensions

PropertyValue
Nominal Weight103.0
Outside Diameter16.0
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix838
Zx138
Sx105
rx5.46
Iy838
Zy138
Sy105
ry5.46
J1680
C209

Full sortable table: Section properties table for this family
