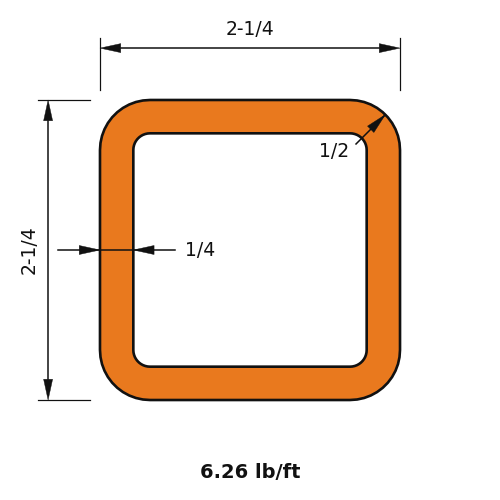

HSS Shapes - Square - HSS2.25x2.25x.25

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight6.26
Depth of Section2.25
Depth of Flat Wall1.55
Width of Section2.25
Width of Flat Wall1.55
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1.13
Zx1.28
Sx1.01
rx0.806
Iy1.13
Zy1.28
Sy1.01
ry0.806
J1.96
C1.85

Full sortable table: Section properties table for this family
