HSS Shapes - Rectangular - HSS2.5x1.5x.125

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

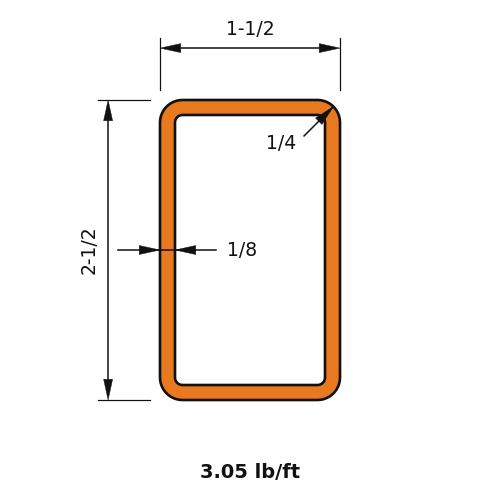

Dimensions

PropertyValue
Nominal Weight3.05
Depth of Section2.5
Depth of Flat Wall2.15
Width of Section1.5
Width of Flat Wall1.15
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix0.668
Zx0.671
Sx0.535
rx0.892
Iy0.3
Zy0.469
Sy0.399
ry0.597
J0.687
C0.759

Full sortable table: Section properties table for this family
