HSS Shapes - Rectangular - HSS2.5x1.5x.25

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

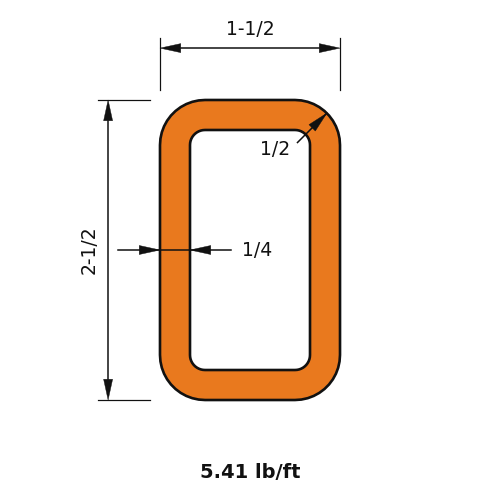

Dimensions

PropertyValue
Nominal Weight5.41
Depth of Section2.5
Depth of Flat Wall1.8
Width of Section1.5
Width of Flat Wall0.801
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1.03
Zx1.11
Sx0.822
rx0.826
Iy0.449
Zy0.764
Sy0.599
ry0.546
J1.1
C1.29

Full sortable table: Section properties table for this family
