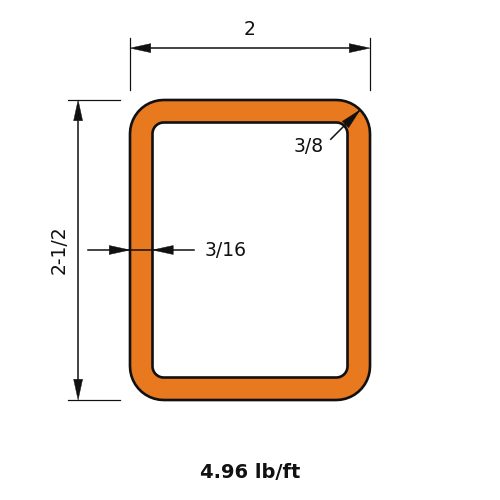

HSS Shapes - Rectangular - HSS2.5x2x.1875

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

Dimensions

PropertyValue
Nominal Weight4.96
Depth of Section2.5
Depth of Flat Wall1.98
Width of Section2.0
Width of Flat Wall1.48
Nominal Thickness0.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1.12
Zx1.12
Sx0.894
rx0.904
Iy0.786
Zy0.956
Sy0.786
ry0.758
J1.55
C1.46

Full sortable table: Section properties table for this family
