HSS Shapes - Square - HSS3x3x.25

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

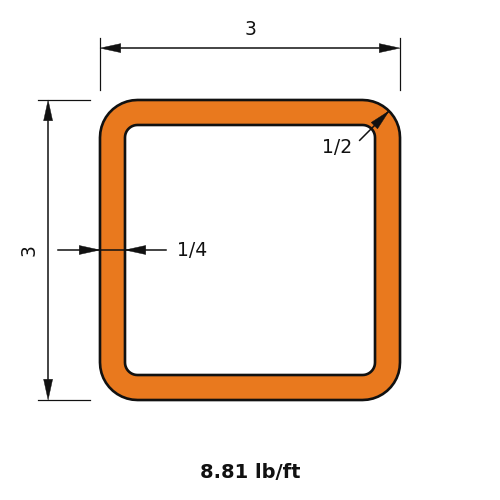

Dimensions

PropertyValue
Nominal Weight8.81
Depth of Section3.0
Depth of Flat Wall2.3
Width of Section3.0
Width of Flat Wall2.3
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix3.02
Zx2.48
Sx2.01
rx1.11
Iy3.02
Zy2.48
Sy2.01
ry1.11
J5.08
C3.52

Full sortable table: Section properties table for this family
