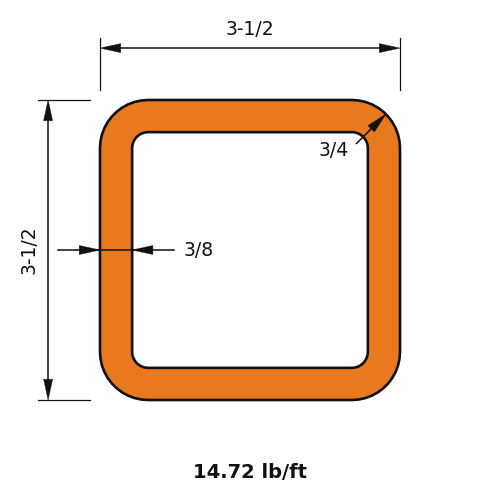

HSS Shapes - Square - HSS3.5x3.5x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight14.72
Depth of Section3.5
Depth of Flat Wall2.45
Width of Section3.5
Width of Flat Wall2.45
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix6.49
Zx4.69
Sx3.71
rx1.26
Iy6.49
Zy4.69
Sy3.71
ry1.26
J11.2
C6.77

Full sortable table: Section properties table for this family
