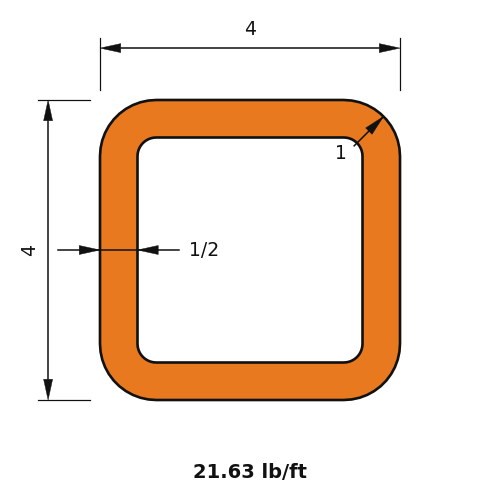

HSS Shapes - Square - HSS4x4x.5

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight21.63
Depth of Section4.0
Depth of Flat Wall2.6
Width of Section4.0
Width of Flat Wall2.6
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix11.9
Zx7.7
Sx5.97
rx1.41
Iy11.9
Zy7.7
Sy5.97
ry1.41
J21
C11.2

Full sortable table: Section properties table for this family
