HSS Shapes - Square - HSS4.5x4.5x.25

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

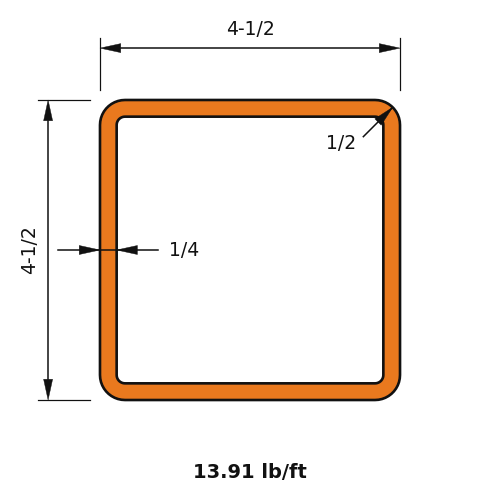

Dimensions

PropertyValue
Nominal Weight13.91
Depth of Section4.5
Depth of Flat Wall3.8
Width of Section4.5
Width of Flat Wall3.8
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix11.4
Zx6.06
Sx5.08
rx1.73
Iy11.4
Zy6.06
Sy5.08
ry1.73
J18.5
C8.44

Full sortable table: Section properties table for this family
