C3x3.5 – C Shapes - American standard channels

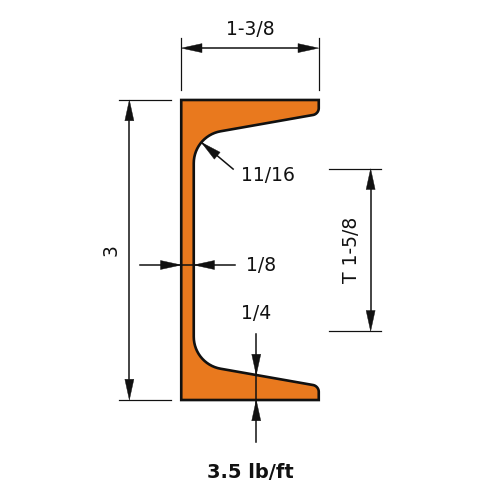

C3x3.5 is a channel 3 in (76 mm) deep with a 1.37 in (35 mm) flange, weighing 3.5 lb/ft (5.2 kg/m).

C shapes (American Standard Channels) have a C-shaped cross-section — two parallel flanges, tapered on their inner face, connected by a single web — giving the section one plane of symmetry rather than two. That asymmetry is exactly what makes channels useful: they're easy to bolt or weld flat along the web, pair back-to-back to form a symmetrical built-up member, or run singly where only one open face is needed. Typical uses include general framing, purlins and girts, bracing, stair stringers, edge trim on slabs and openings, and structural framing for trailers, truck bodies, and other equipment where a channel's flat web face simplifies attachment.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)3.5
Depth of Section (in)3.0
Width of Section (in)1.37
Web Thickness (in)0.132
Flange Thickness (in)0.273
Kdet Dimension (in)0.6875
T Dimension (in)1.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1.57
Zx (in³)1.24
Sx (in³)1.04
rx (in)1.2
Iy (in⁴)0.169
Zy (in³)0.364
Sy (in³)0.182
ry (in)0.394
J (in⁴)0.0226
Cw (in⁶)0.276
ro (in)1.57
H (-)0.646
rts (in)0.456
ho (in)2.73
