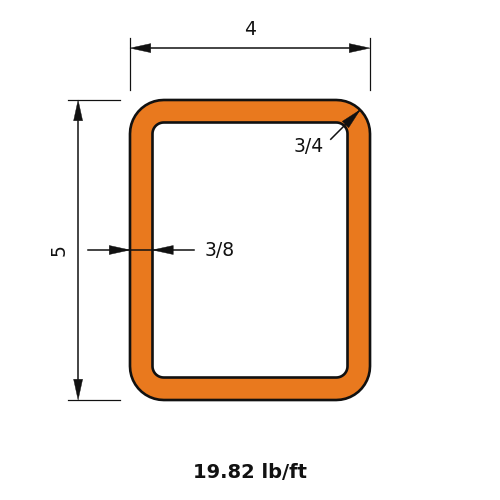

HSS Shapes - Rectangular - HSS5x4x.375

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

Dimensions

PropertyValue
Nominal Weight19.82
Depth of Section5.0
Depth of Flat Wall3.95
Width of Section4.0
Width of Flat Wall2.95
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix17.9
Zx8.96
Sx7.17
rx1.81
Iy12.6
Zy7.67
Sy6.3
ry1.52
J24.9
C11.7

Full sortable table: Section properties table for this family
