HSS Shapes - Square - HSS5x5x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

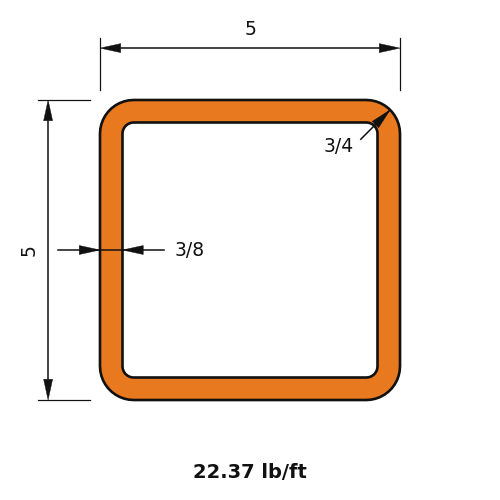

Dimensions

PropertyValue
Nominal Weight22.37
Depth of Section5.0
Depth of Flat Wall3.95
Width of Section5.0
Width of Flat Wall3.95
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix21.7
Zx10.6
Sx8.68
rx1.87
Iy21.7
Zy10.6
Sy8.68
ry1.87
J36.1
C14.9

Full sortable table: Section properties table for this family
