HSS Shapes - Square - HSS5.5x5.5x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

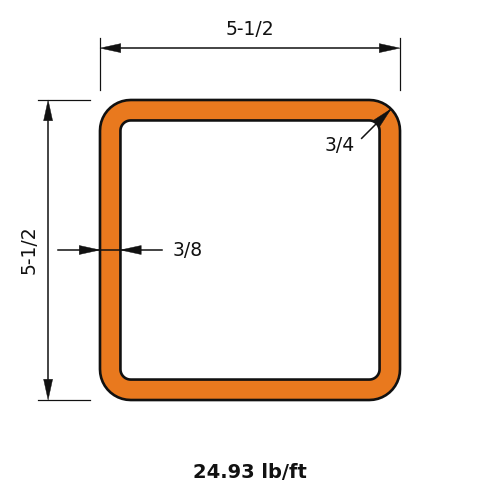

Dimensions

PropertyValue
Nominal Weight24.93
Depth of Section5.5
Depth of Flat Wall4.45
Width of Section5.5
Width of Flat Wall4.45
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix29.7
Zx13.1
Sx10.8
rx2.08
Iy29.7
Zy13.1
Sy10.8
ry2.08
J49
C18.4

Full sortable table: Section properties table for this family
