HSS Shapes - Square - HSS7x7x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

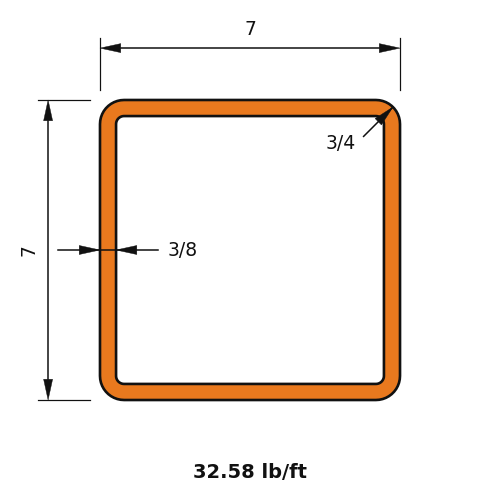

Dimensions

PropertyValue
Nominal Weight32.58
Depth of Section7.0
Depth of Flat Wall5.95
Width of Section7.0
Width of Flat Wall5.95
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix65
Zx22.1
Sx18.6
rx2.69
Iy65
Zy22.1
Sy18.6
ry2.69
J105
C30.7

Full sortable table: Section properties table for this family
