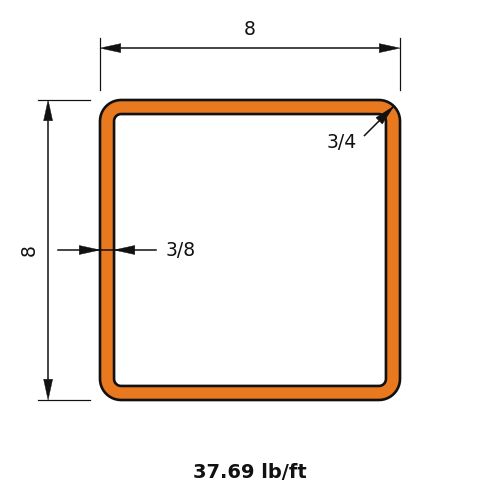

HSS Shapes - Square - HSS8x8x.375
Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 37.69 |
| Depth of Section | 8.0 |
| Depth of Flat Wall | 6.95 |
| Width of Section | 8.0 |
| Width of Flat Wall | 6.95 |
| Nominal Thickness | 0.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 100 |
| Zx | 29.4 |
| Sx | 24.9 |
| rx | 3.1 |
| Iy | 100 |
| Zy | 29.4 |
| Sy | 24.9 |
| ry | 3.1 |
| J | 160 |
| C | 40.7 |
Full sortable table: Section properties table for this family
