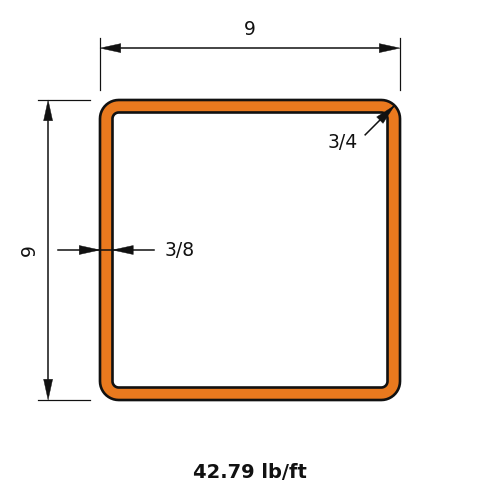

HSS Shapes - Square - HSS9x9x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight42.79
Depth of Section9.0
Depth of Flat Wall7.95
Width of Section9.0
Width of Flat Wall7.95
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix145
Zx37.8
Sx32.2
rx3.51
Iy145
Zy37.8
Sy32.2
ry3.51
J231
C52.1

Full sortable table: Section properties table for this family
