HP12x89 – HP Shapes - American wide flange bearing piles
HP12x89 is 12.4 in (315 mm) deep with a 12.3 in (312 mm) wide flange, and weighs 89 lb/ft (132.4 kg/m).
HP shapes are wide-flange sections purpose-built for deep foundation piling. Unlike a W shape, an HP shape has flange and web thicknesses that are equal or very close to equal — a proportion specifically chosen so the section can withstand the pounding of pile-driving without local buckling or damage to the thinner web. Once driven, HP piles carry structural loads down through weak or unstable soil to a competent bearing layer or bedrock, making them a standard choice for foundations under buildings, bridges, and marine and waterfront structures where shallow foundations aren't an option.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections

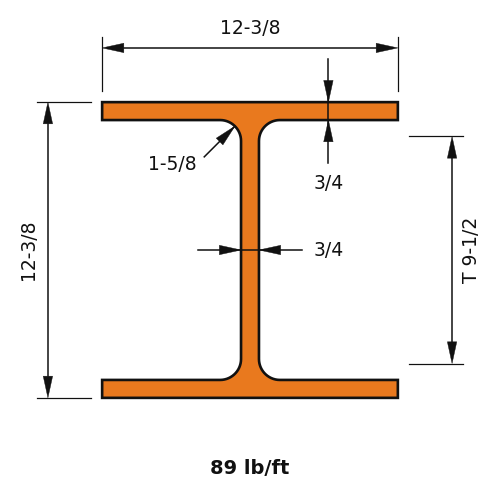

Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 89.0 |
| Depth of Section (in) | 12.4 |
| Width of Section (in) | 12.3 |
| Web Thickness (in) | 0.72 |
| Flange Thickness (in) | 0.72 |
| Kdet Dimension (in) | 1.625 |
| T Dimension (in) | 9.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 693 |
| Zx (in³) | 127 |
| Sx (in³) | 112 |
| rx (in) | 5.17 |
| Iy (in⁴) | 224 |
| Zy (in³) | 56 |
| Sy (in³) | 36.4 |
| ry (in) | 2.94 |
| J (in⁴) | 4.92 |
| Cw (in⁶) | 7640 |
| rts (in) | 3.42 |
| ho (in) | 11.7 |
Full sortable table: Section properties table for this family
