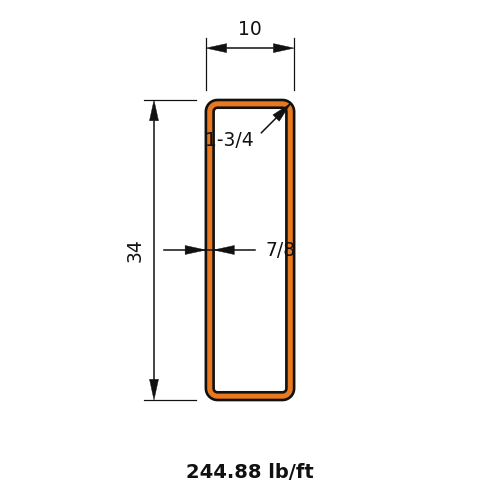

HSS Shapes - Rectangular - HSS34x10x.875

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

Dimensions

PropertyValue
Nominal Weight244.88
Depth of Section34.0
Depth of Flat Wall31.6
Width of Section10.0
Width of Flat Wall7.56
Nominal Thickness0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix8600
Zx668
Sx506
rx11.3
Iy1210
Zy274
Sy242
ry4.24
J3630
C494
