HSS30x10x7/8 (HSS30x10x.875) – HSS Shapes - Rectangular

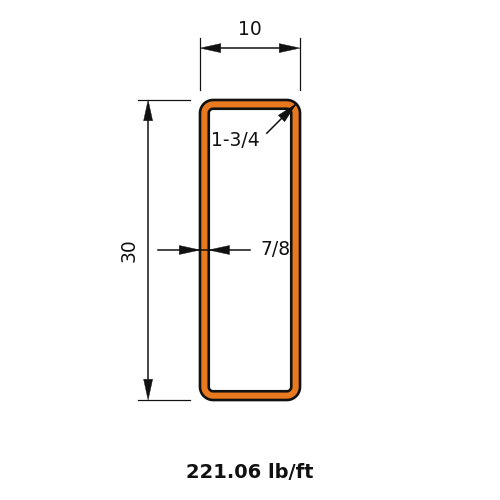

HSS30x10x7/8 is a 30 in (762 mm) x 10 in (254 mm) rectangular hollow section with a 7/8 in (22 mm) nominal wall, weighing 221.06 lb/ft (329.0 kg/m).

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)221.06
Depth of Section (in)30.0
Depth of Flat Wall (in)27.6
Width of Section (in)10.0
Width of Flat Wall (in)7.56
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)6190
Zx (in³)540
Sx (in³)413
rx (in)10.1
Iy (in⁴)1070
Zy (in³)245
Sy (in³)215
ry (in)4.2
J (in⁴)3110
C (in³)434

Full sortable table: Section properties table for this family
