HSS24x16x3/4 (HSS24x16x.75) – HSS Shapes - Rectangular

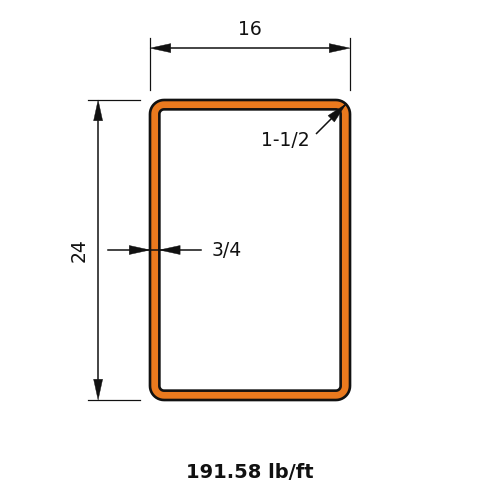

HSS24x16x3/4 is a 24 in (610 mm) x 16 in (406 mm) rectangular hollow section with a 3/4 in (19 mm) nominal wall, weighing 191.58 lb/ft (285.1 kg/m).

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)191.58
Depth of Section (in)24.0
Depth of Flat Wall (in)21.9
Width of Section (in)16.0
Width of Flat Wall (in)13.9
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4200
Zx (in³)424
Sx (in³)350
rx (in)8.93
Iy (in⁴)2250
Zy (in³)321
Sy (in³)281
ry (in)6.53
J (in⁴)4680
C (in³)496

Full sortable table: Section properties table for this family
