HSS22x22x7/8 (HSS22x22x.875) – HSS Shapes - Square

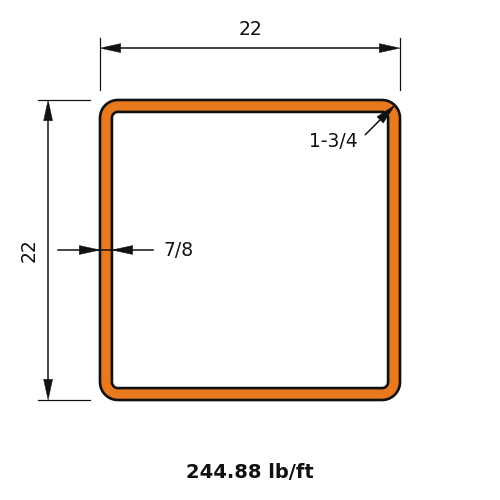

HSS22x22x7/8 is a 22 in (559 mm) square hollow section with a 7/8 in (22 mm) nominal wall, weighing 244.88 lb/ft (364.4 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)244.88
Depth of Section (in)22.0
Depth of Flat Wall (in)19.6
Width of Section (in)22.0
Width of Flat Wall (in)19.6
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4970
Zx (in³)530
Sx (in³)452
rx (in)8.59
Iy (in⁴)4970
Zy (in³)530
Sy (in³)452
ry (in)8.59
J (in⁴)7890
C (in³)729
