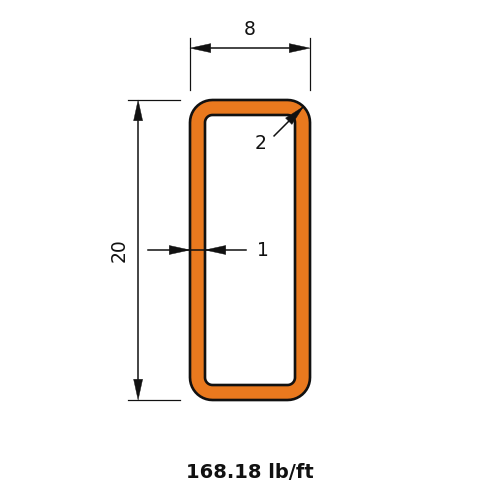

HSS Shapes - Rectangular - HSS20x8x1

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

Dimensions

PropertyValue
Nominal Weight168.18
Depth of Section20.0
Depth of Flat Wall17.2
Width of Section8.0
Width of Flat Wall5.21
Nominal Thickness1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix2060
Zx273
Sx206
rx6.67
Iy472
Zy141
Sy118
ry3.19
J1320
C248

Full sortable table: Section properties table for this family
