HSS20x20x7/8 (HSS20x20x.875) – HSS Shapes - Square

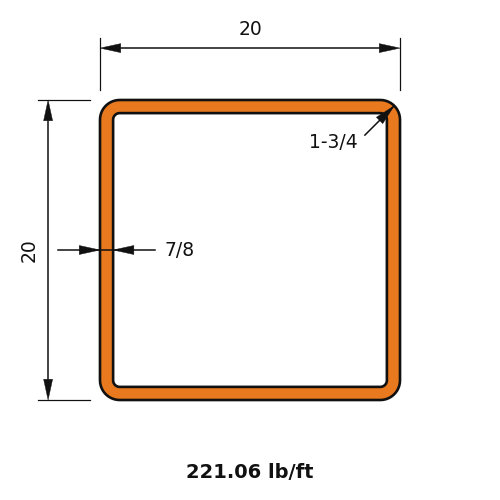

HSS20x20x7/8 is a 20 in (508 mm) square hollow section with a 7/8 in (22 mm) nominal wall, weighing 221.06 lb/ft (329.0 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)221.06
Depth of Section (in)20.0
Depth of Flat Wall (in)17.6
Width of Section (in)20.0
Width of Flat Wall (in)17.6
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3670
Zx (in³)433
Sx (in³)367
rx (in)7.77
Iy (in⁴)3670
Zy (in³)433
Sy (in³)367
ry (in)7.77
J (in⁴)5870
C (in³)597
