HSS Shapes - Rectangular - HSS18x6x.75

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

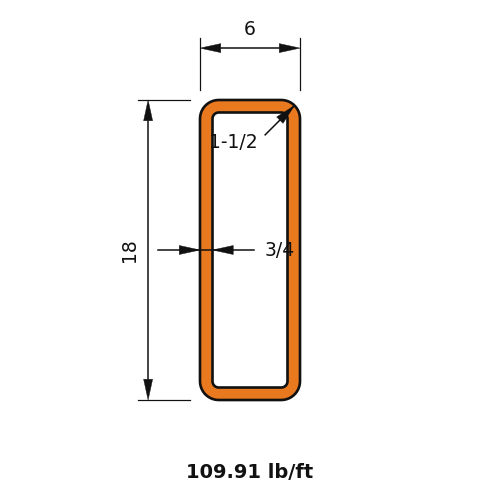

Dimensions

PropertyValue
Nominal Weight109.91
Depth of Section18.0
Depth of Flat Wall15.9
Width of Section6.0
Width of Flat Wall3.91
Nominal Thickness0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1060
Zx158
Sx118
rx5.92
Iy179
Zy70.4
Sy59.6
ry2.43
J530
C127

Full sortable table: Section properties table for this family
