HSS18x18x3/8 (HSS18x18x.375) – HSS Shapes - Square

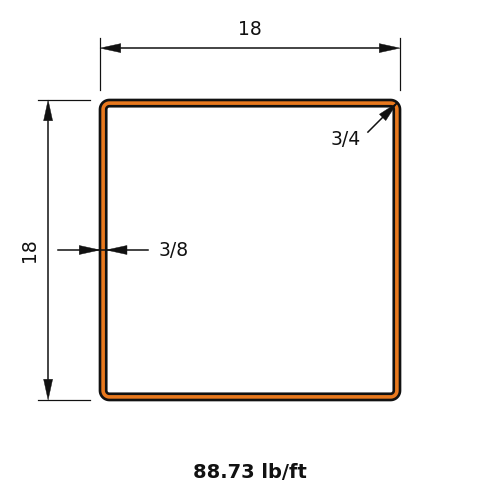

HSS18x18x3/8 is an 18 in (457 mm) square hollow section with a 3/8 in (10 mm) nominal wall, weighing 88.73 lb/ft (132.0 kg/m).
Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 88.73 |
| Depth of Section (in) | 18.0 |
| Depth of Flat Wall (in) | 17.0 |
| Width of Section (in) | 18.0 |
| Width of Flat Wall (in) | 17.0 |
| Nominal Thickness (in) | 0.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 1250 |
| Zx (in³) | 160 |
| Sx (in³) | 139 |
| rx (in) | 7.18 |
| Iy (in⁴) | 1250 |
| Zy (in³) | 160 |
| Sy (in³) | 139 |
| ry (in) | 7.18 |
| J (in⁴) | 1940 |
| C (in³) | 217 |
Full sortable table: Section properties table for this family
