HSS16x12x7/8 (HSS16x12x.875) – HSS Shapes - Rectangular

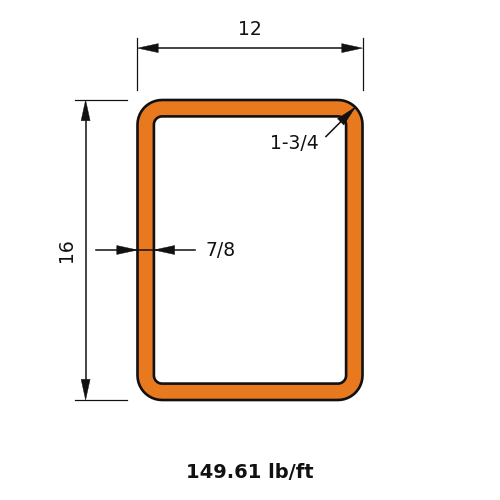

HSS16x12x7/8 is a 16 in (406 mm) x 12 in (305 mm) rectangular hollow section with a 7/8 in (22 mm) nominal wall, weighing 149.61 lb/ft (222.6 kg/m).

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)149.61
Depth of Section (in)16.0
Depth of Flat Wall (in)13.6
Width of Section (in)12.0
Width of Flat Wall (in)9.56
Nominal Thickness (in)0.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1430
Zx (in³)219
Sx (in³)178
rx (in)5.88
Iy (in⁴)910
Zy (in³)179
Sy (in³)152
ry (in)4.7
J (in⁴)1830
C (in³)274
