HSS Shapes - Rectangular - HSS14x8x.625

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

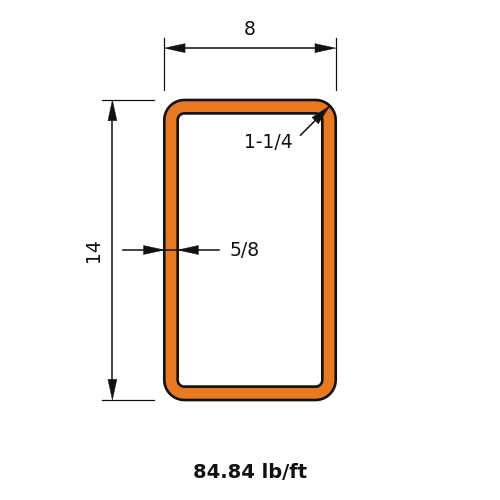

Dimensions

PropertyValue
Nominal Weight84.84
Depth of Section14.0
Depth of Flat Wall12.3
Width of Section8.0
Width of Flat Wall6.26
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix582
Zx104
Sx83.2
rx5
Iy242
Zy70.5
Sy60.6
ry3.22
J566
C115

Full sortable table: Section properties table for this family
